Performance | Maximum Payload | 11,000 kg |
---|---|---|
Travel Speed (High/Low) | 11.8 / 7.6 km/h | |
Ground Pressure (Empty/Loaded) | 35.4 / 43.5 kPa | |
Machine Dimension and Weight | Operating Weight | 16,000 kg |
Overall Length | 6,000 mm | |
Overall Width | 2,980 mm | |
Overall Height | 3,200 mm | |
Minimum Ground Clearance | 455 mm | |
Crawler Width | 800 mm | |
Dump Body | Dump Shape | Scoop end |
Length x Width x Height | 3,050 x 2,750 x 635 mm | |
Dump Capacity (Struck/Heaped) | 4.36 / 6.17 m³ | |
Engine | Name | CAT C7.1 |
Nominal Output | 186 kW / 2,600rpm | |
Fuel Used | Diesel | |
Tank Capacity | Fuel Tank Capacity | 300 ℓ |
Hydraulic Oil Tank Capacity | 154 ℓ | |
DEF Tank Capacity | 32 ℓ | |
Off-Road Law Emission Regulation Notification and Standards | Name and Model of The non-road special motor vehicle | MOROOKA MST-2200VDR-VIA |
Name and Type of Specified prime mover | Caterpillar YDS-C7.1B | |
Emission Standard | Tier 4 Final / EU Stage V |
Performance | Maximum Payload | 24,251 lbs |
---|---|---|
Travel Speed (High/Low) | 7.3 / 4.7 mph | |
Ground Pressure (Empty/Loaded) | 5.1 / 6.3 psi | |
Machine Dimension and Weight | Operating Weight | 35,274 lbs |
Overall Length | 19’8″ | |
Overall Width | 9’9″ | |
Overall Height | 10’6″ | |
Minimum Ground Clearance | 18″ | |
Crawler Width | 31″ | |
Dump Body | Dump Shape | Scoop end |
Length x Width x Height | 10’0″ x 9’0″ x 2’1″ | |
Dump Capacity (Struck/Heaped) | 5.7 / 8.1 yd³ | |
Engine | Name | CAT C7.1 |
Nominal Output | 253 HP / 2,600 rpm | |
Fuel Used | Diesel | |
Tank Capacity | Fuel Tank Capacity | 79.3 gal (US) |
Hydraulic Oil Tank Capacity | 40.7 gal (US) | |
DEF Tank Capacity | 8.5 gal (US) | |
Off-Road Law Emission Regulation Notification and Standards | Name and Model of The non-road special motor vehicle | MOROOKA MST-2200VDR-VIA |
Name and Type of Specified prime mover | Caterpillar YDS-C7.1B | |
Emission Standard | Tier 4 Final / EU Stage V |

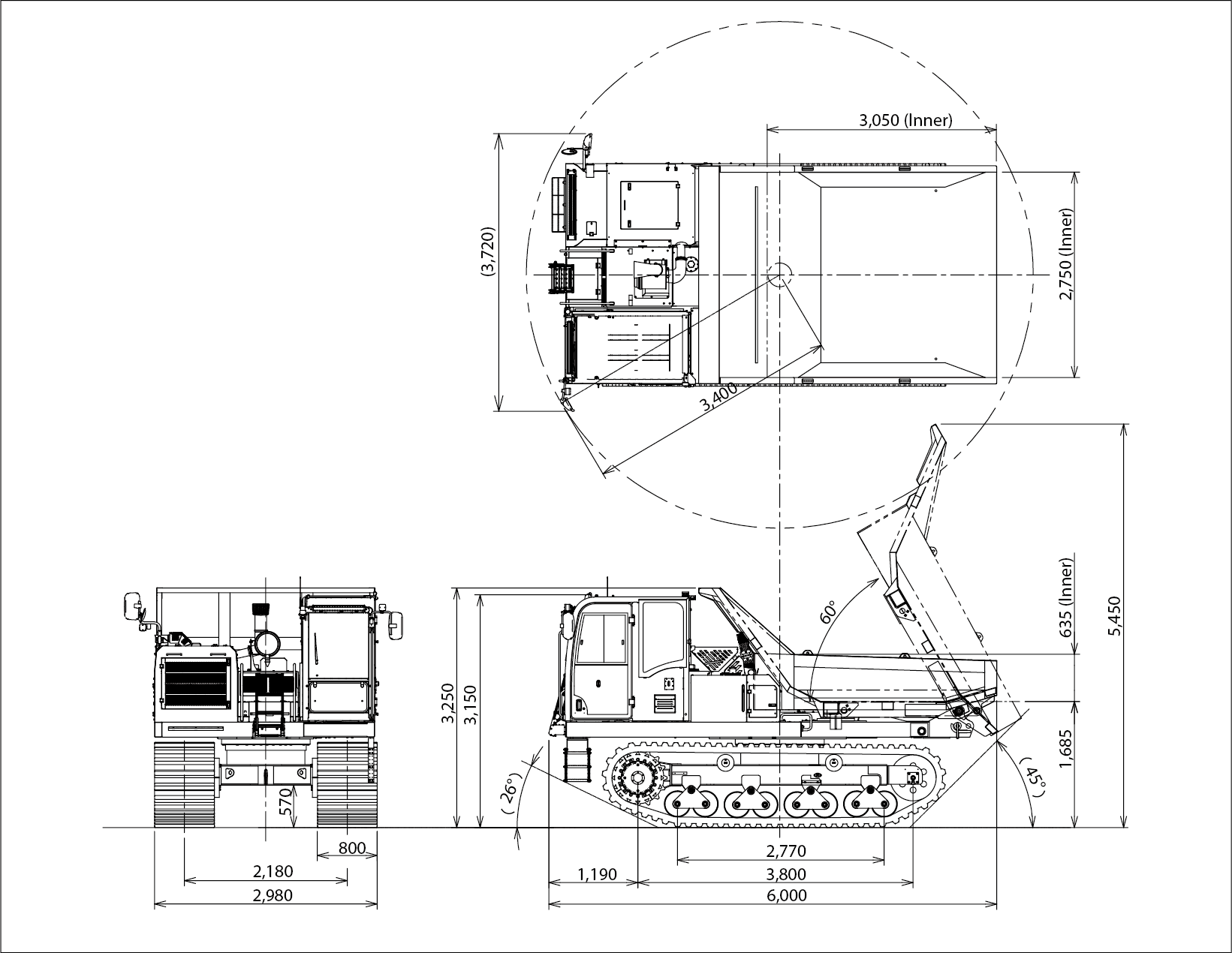

Dimensions
unit:mm
Downloads SPEC SHEET DOWNLOAD
Feature
360° Full Rotating Crawler Carrier
The machine could change travel direction at narrow space without pivot turn and spin turn since upper structure can rotate. The rotating function also eases the machine to unload.
![](https://www.morooka.com/wpe/wp-content/uploads/2024/01/IMG_3892.png)
High performance movement and excellent traction
The machine could change travel direction at narrow space without pivot turn and spin turn since upper structure can rotate. The rotating function also eases the machine to unload.
![](https://product.morooka.co.jp/wp-content/uploads/2024/01/mst110cr_feature_2-1-scaled.jpg)
Caution lamps and monitor display have been centralized at right hand side of operator seat.
Warning lamps and the LCD monitor are located centrally on the right side of the operator’s s seat. Various statuses related to the vehicle such as remaining fuel level, voltage, engine speed meter, warning lamp lighting, etc. can now be easily checked. In addition, the newly installed 360-degree camera makes it easier to check the front, rear, left, and right sides of the vehicle.
![](https://product.morooka.co.jp/wp-content/uploads/2024/01/IMG_3836-scaled.jpg)
Hardox® In My Body certified dump body has been applied
Newly applied Hardox® In My Body certified dump body improves durability of the dump bed and also contributes running cost reduction due to its longer life than conventional tipping body.
![](https://product.morooka.co.jp/wp-content/uploads/2024/01/IMG_3797.png)
Electric Control Joystick
Electric control travel lever has been introduced. Intuitive operation is possible with only the left-hand joystick for driving. Driving posture has also been improved compared to conventional machines, reducing operator’s fatigue. In addition, operation systems such as the horn and high speed/low speed switching are integrated into the travel lever, allowing the vehicle to travel as the operator wishes.
![](https://product.morooka.co.jp/wp-content/uploads/2024/01/Image-1.png)
Auto Decel function and super slow mode
The “Auto Decel function” automatically lowers the engine speed when idling for a certain period of time, improving fuel efficiency and reducing CO2 emissions and noise.
Super slow mode is an excellent mode for slow speed operation. You can drive with confidence in situations that require slow speeds such as driving on narrow roads, loading work to transport vehicles, and parking.
Super slow mode is an excellent mode for slow speed operation. You can drive with confidence in situations that require slow speeds such as driving on narrow roads, loading work to transport vehicles, and parking.
![](https://product.morooka.co.jp/wp-content/uploads/2024/01/mst110cr_feature_6.jpg)
Maintenance
Improvement in maintainability
The front grille which has a large opening, making it easy to perform inspections and maintenance. DEF tank is placed next to the fuel tank for added convenience.
![](https://product.morooka.co.jp/wp-content/uploads/2024/01/mst110cr_maintenance_1-1.png)
Large sized step
The step used to climb up and down the vehicle during inspection and maintenance has been improved.
![](https://product.morooka.co.jp/wp-content/uploads/2024/01/mst110cr_maintenance_3.jpg)

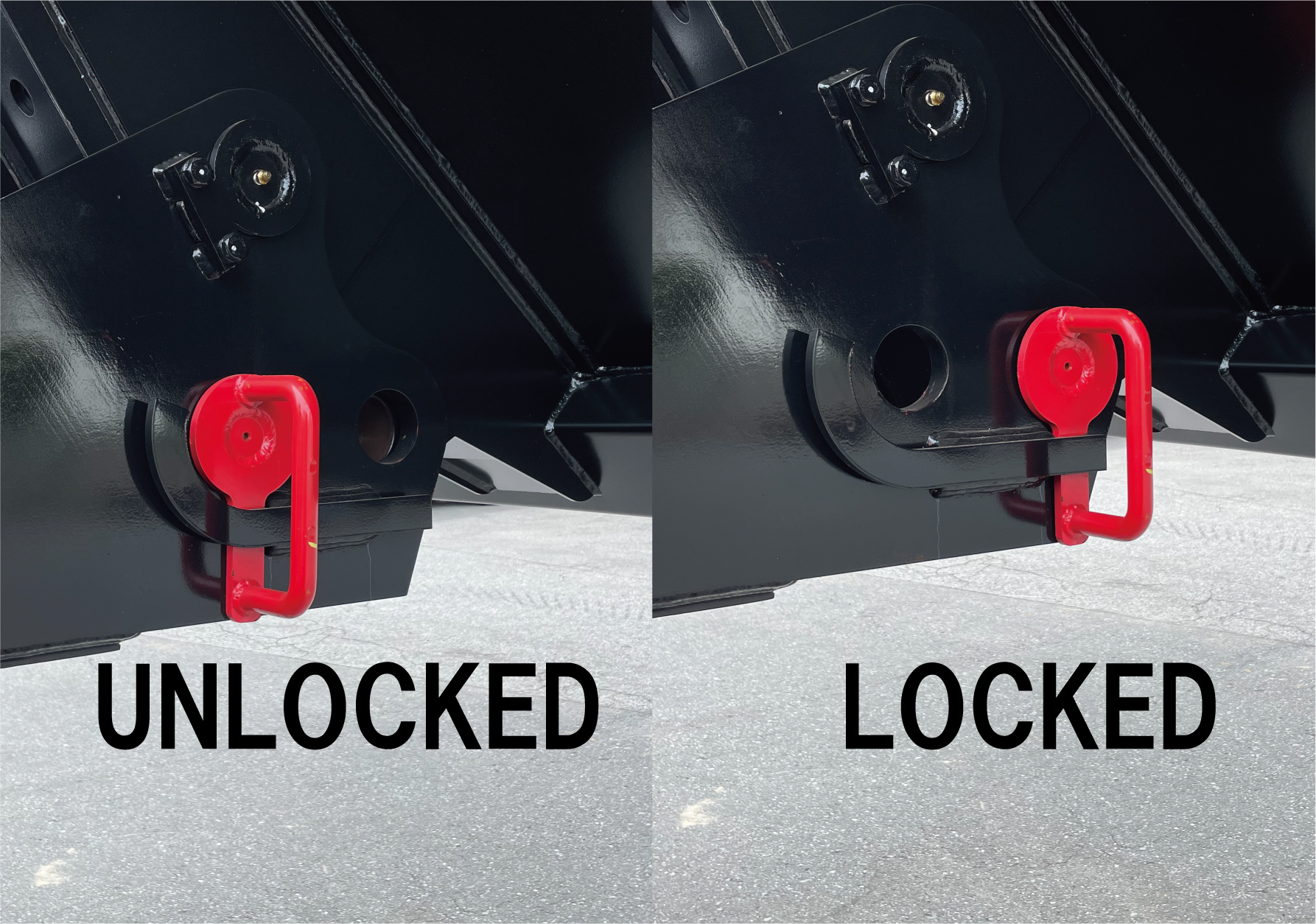

Renewed dump bed lock system
The lock mechanism on the dump bed stopper has been redesigned for quick and safe access.
Safety
ROPS / FOPS Cabin
The cabin with great comfort and visibility is compatible with ROPS (Rollover Protection Structure) and FOPS (Falling Object Protective Structure) to protect the operator.
![](https://product.morooka.co.jp/wp-content/uploads/2024/01/110cr_cab.png)
Safety functions
You can stop the vehicle’s engine by pressing the emergency stop switch. (Left)
The engine does not start unless the parking brake is turned on, preventing unintended operation after the engine starts.(Center)
A safety lock lever is equipped on left side of the seat. By installing a safety lock lever in addition to the parking brake, safety is greatly improved and accidents caused by unintended movements are prevented.(Right)
![](https://product.morooka.co.jp/wp-content/uploads/2024/01/mst110cr_safety_2.png)
Enhanced safety functions
Equipped with a 360-degree camera, allowing the driver to easily check blind spots and ensure safety during work. (Left)
A large LED headlight is placed on the upper part of the cabin, making it safer to work at night or in dark places. (Center)
Equipped with a large mirror so that you can check the safety of the surroundings, which are likely to be blind spots, from the driver’s seat. (Right)
![](https://product.morooka.co.jp/wp-content/uploads/2024/01/mst110cr_safety_5.png)
