Performance | Maximum Payload | 8,000 kg |
---|---|---|
Travel Speed (High/Low) | 9.7 / 6.7 km/h | |
Ground Pressure (Empty/Loaded) | 25.7 / 44.4 kPa | |
Machine Dimension and Weight | Operating Weight | 11,000 kg |
Overall Length | 5,840 mm | |
Overall Width | 2,650 mm | |
Overall Height | 2,930 mm | |
Minimum Ground Clearance | 540 mm | |
Crawler Width | 700 mm | |
Dump Body | Dump Shape | Drop side |
Length x Width x Height | 3,100 x 2,200 x 370 mm | |
Dump Capacity (Struck/Heaped) | 2.5 / 4.2 m³ | |
Engine | Name | Cummins QSB6.7-4E |
Nominal Output | 168 kW / 2,200rpm | |
Fuel Used | Diesel | |
Tank Capacity | Fuel Tank Capacity | 251 ℓ |
Hydraulic Oil Tank Capacity | 125 ℓ | |
DEF Tank Capacity | 33.54 ℓ | |
Off-Road Law Emission Regulation Notification and Standards | Name and Model of The non-road special motor vehicle | MOROOKA MST-1500VD-VIB |
Name and Type of Specified prime mover | Cummins QSB6.7-4E | |
Emission Standard | Tier 4 Final / EU Stage V |
Performance | Maximum Payload | 17,637 lbs |
---|---|---|
Travel Speed (High/Low) | 6 / 4.2 mph | |
Ground Pressure (Empty/Loaded) | 3.7 / 6.4 psi | |
Machine Dimension and Weight | Operating Weight | 24,251 lbs |
Overall Length | 19’2″ | |
Overall Width | 8’8″ | |
Overall Height | 9’7″ | |
Minimum Ground Clearance | 21″ | |
Crawler Width | 28″ | |
Dump Body | Dump Shape | Drop side |
Length x Width x Height | 10’2″ x 7’3″ x 1’3″ | |
Dump Capacity (Struck/Heaped) | 3.3 / 5.5 yd³ | |
Engine | Name | Cummins QSB6.7-4E |
Nominal Output | 228 HP / 2,200 rpm | |
Fuel Used | Diesel | |
Tank Capacity | Fuel Tank Capacity | 66.3 gal (US) |
Hydraulic Oil Tank Capacity | 33 gal (US) | |
DEF Tank Capacity | 8.9 gal (US) | |
Off-Road Law Emission Regulation Notification and Standards | Name and Model of The non-road special motor vehicle | MOROOKA MST-1500VD-VIB |
Name and Type of Specified prime mover | Cummins QSB6.7-4E | |
Emission Standard | Tier 4 Final / EU Stage V |

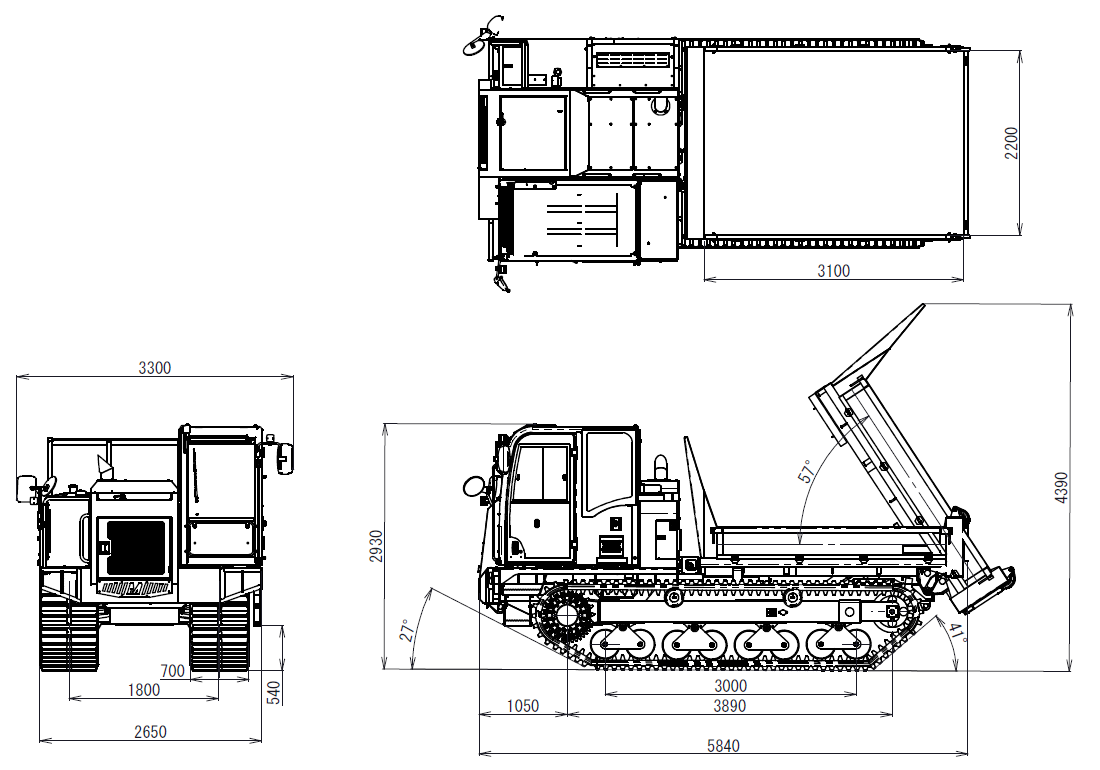

Dimensions
unit:mm
Downloads SPEC SHEET DOWNLOAD
Feature
High performance movement and excellent traction
Thick, seamless rubber tracks provide outstanding durability! The rubber crawler is driven by The HST (Hydro Static Transmission) system. Hydraulic drive transmission provides smooth movement.
![](https://product.morooka.co.jp/wp-content/uploads/2024/03/mst80c_feature_1.jpg)
Caution lamps and monitor display have been centralized at right hand side of operator seat.
Caution lamps and monitor display have been centralized at right hand side of operator seat. machine status including amount of fuel, voltage, engine rotation, caution lamp lighting when problem occurs can be easily checked.
![](https://product.morooka.co.jp/wp-content/uploads/2024/03/mst80c_feature_2.png)
Hardox® In My Body certified dump body has been applied
Newly applied Hardox® In My Body certified dump body improves durability of the dump bed and also contributes running cost reduction due to its longer life than conventional tipping body.
![](https://product.morooka.co.jp/wp-content/uploads/2024/03/mst80c_feature_3.png)
Electric Control Joystick
Electric control travel lever has been introduced. Intuitive operation is possible with only the left-hand joystick for driving. Driving posture has also been improved compared to conventional machines, reducing operator’s fatigue. In addition, operation systems such as the horn, dump, and high speed/low speed switching are integrated into the travel lever, allowing the vehicle to travel as the operator wishes.
![](https://product.morooka.co.jp/wp-content/uploads/2024/03/mst80c_feature_4.jpg)
Anti Stall and Auto Decel
Equipped with an “Anti-stall function” that prevents the engine from stalling during high-load work such as running on uphill and turning when loaded. Workability will be improved.
The “Auto Decel function” automatically lowers the engine speed when idling for a certain period of time, improving fuel efficiency and reducing CO2 emissions and noise.
![](https://product.morooka.co.jp/wp-content/uploads/2024/03/mst80c_feature_5.png)
Maintenance
Improvement in maintainability
Each components are arranged for efficient inspection and maintenance. The front grille which has a large opening, making it easy to perform inspections and maintenance.
![](https://product.morooka.co.jp/wp-content/uploads/2024/03/mst80c_maintenance_1.png)
Safety
ROPS / FOPS Cabin
The cabin with great comfort and visibility is compatible with ROPS (Rollover Protection Structure) and FOPS (Falling Object Protective Structure) to protect the operator.
![](https://product.morooka.co.jp/wp-content/uploads/2024/03/mst80c_safety_1.png)
Safety functions
You can stop the vehicle’s engine by pressing the emergency stop switch.
The engine does not start unless the parking brake is turned on, preventing unintended operation after the engine starts.
A safety lock lever is equipped on left side of the seat. By installing a safety lock lever in addition to the parking brake, safety is greatly improved and accidents caused by unintended movements are prevented.
![](https://product.morooka.co.jp/wp-content/uploads/2024/03/mst80c_safety_2.jpg)
*Do not use the emergency stop switch except in emergencies.
Enhanced safety functions
Reinforced protective bumpers that are easy to remove on the left and right sides of the front part of the vehicle and that combine safety and durability in harsh worksites are installed as standard. A reinforced ribbed undercover protects the machine from bumps on rough roads.
A large LED headlight is placed on the upper part of the cabin, making it safer to work at night or in dark places.
Equipped with a large mirror so that you can check the safety of the surroundings, which are likely to be blind spots, from the driver’s seat.
![](https://product.morooka.co.jp/wp-content/uploads/2024/03/mst80c_safety_3.jpg)
